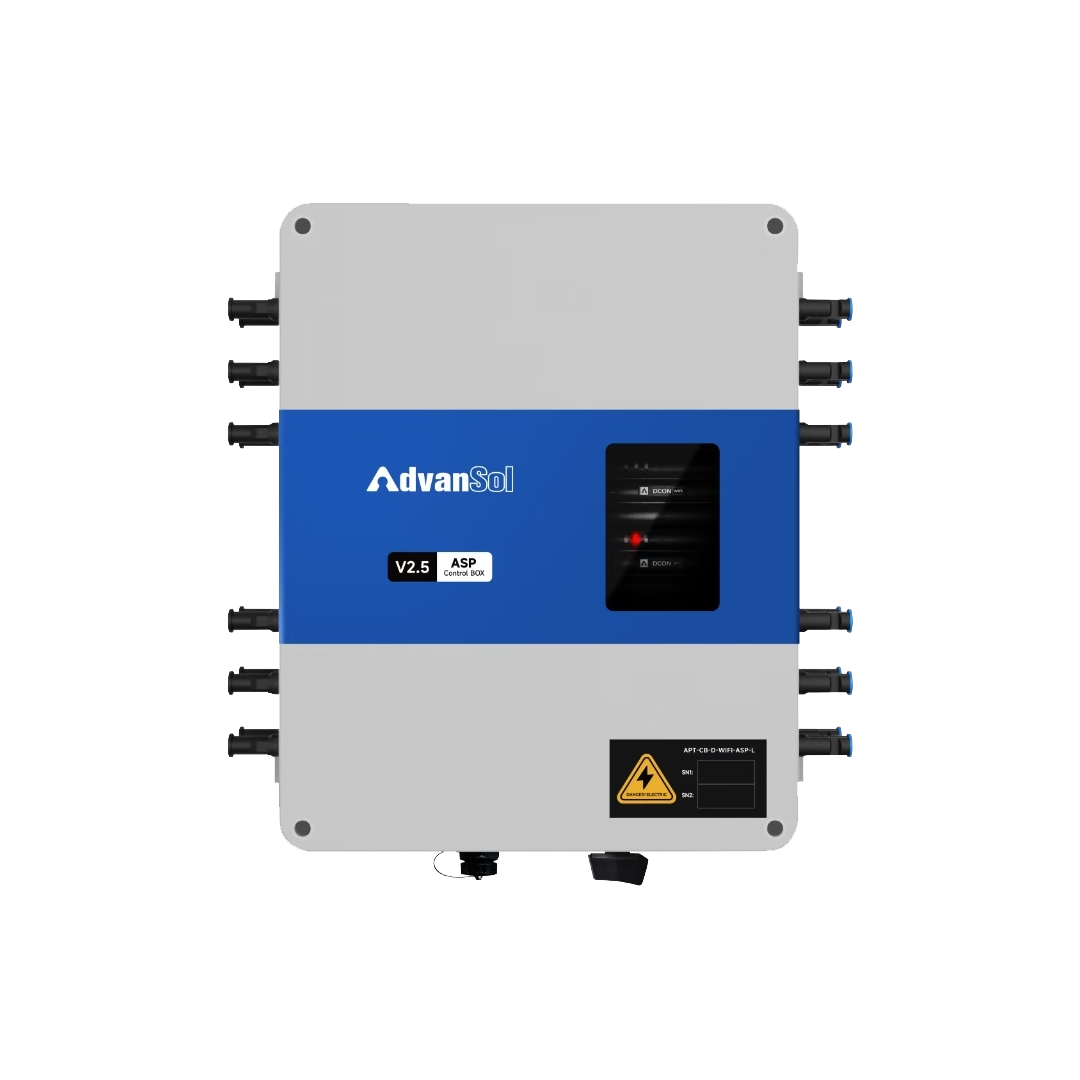

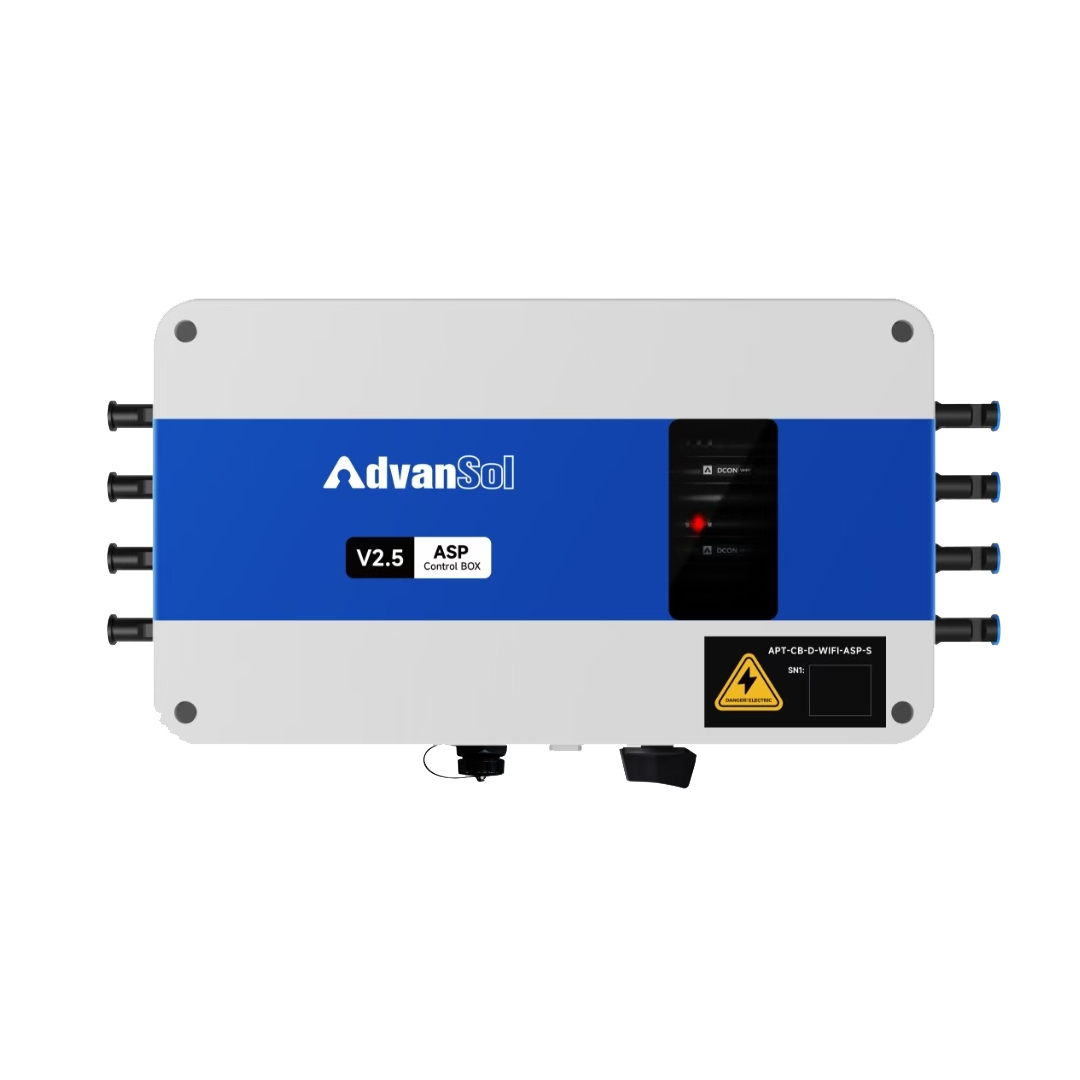

The new AdvanSol V2.5 Data Control Box ASP is an upgraded version of the V2.5 Data Control Box. It incorporates multiple AdvanSol patented technologies, offering a more reliable and flexible configuration for AdvanSol Micro-Controllers.
200
Support components4
(ASP-S)12
(ASP-L)PLC
Communication mode
Supports 4G/WiFi/LAN communication protocol
Realize interconnection and interoperability with Acloud smart cloud platform
Adaptable to third-party string inverters
Power carrier PLC communication, no need for additional communication lines, stable and reliable communication
This product is suitable for the Aichang v2.5 solution
| Technical Parameters | APT-CB-D-4G-ASP-SA | APT-CB-D-WIFI-ASP-SAL |
| Data controller | DCON-4G | DCON-WIFI |
| Compatible micro controller | MR/MRO series | MR/MRO series |
| Communication mode with Acloud | 4G/LAN | WIFI/LAN |
| Communication mode with micro controller | PLC | PLC |
| Max. number of strings supported | 4 Strings (ASP-S) 12 Strings (ASP-L) | 4 Strings (ASP-S) 12 Strings (ASP-L) |
| Power Supply | 100-260V (AC) | 100-260V (AC) |
| Communication Interval | 5min | 5min |
| Local Data Storage time | 7Days | 7Days |
| Working ambient temperature | -20°C~65°C | -20°C~65°C |
| Coolling | Natural cooling | Natural cooling |
| Dimensions(LxWxD) | 350*200*160 mm (ASP-S) 400*350*170 mm (ASP-L) | 350*200*160 mm (ASP-S) 400*350*170 mm (ASP-L) |
| Protection Rating | IP65 | IP65 |
